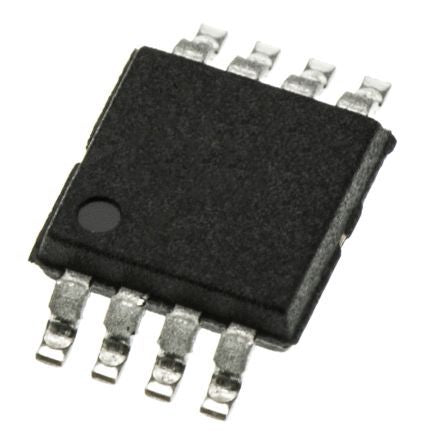

3ppm/°C Low-Dropout Voltage Ref [MAX6133A25+]; 190-4443
0₫
Mã kho: 1904443
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 2.5V |
| Package Type | μMax |
| Reference Type | Precision |
| Initial Accuracy | ±0.06% |
| Mounting Type | Surface Mount |
| Topology | Series/Shunt |
| Maximum Input Voltage | 12.6 V |
| Minimum Output Voltage | 2.49 V |
| Maximum Output Voltage | 2.501 V |
| Pin Count | 8 |
| Line Regulation | 30 μV/V |
| Load Regulation | 0.05 (Sourcing & Sink) mV/mA |
| Dimensions | 3.1 x 3.1 x 0.95mm |
| Minimum Operating Temperature | -40 °C |
| Height | 0.95mm |
| Width | 3.1mm |
| Length | 3.1mm |
| Maximum Operating Temperature | +125 °C |
