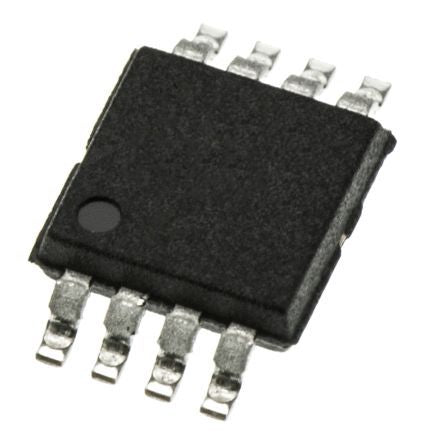

UH-Precision UL-Noise Series Voltage Ref [MAX6126A30+]; 190-4437
0₫
Mã kho: 1904437
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 3V |
| Package Type | μMax |
| Reference Type | Precision |
| Initial Accuracy | ±0.06% |
| Mounting Type | Surface Mount |
| Topology | Series/Shunt |
| Maximum Input Voltage | 12.6 V |
| Pin Count | 8 |
| Line Regulation | 50 μV/V |
| Load Regulation | 30 (Sourcing & Sink) μV/mA |
| Dimensions | 3.1 x 3.1 x 0.95mm |
| Width | 3.1mm |
| Height | 0.95mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Length | 3.1mm |
