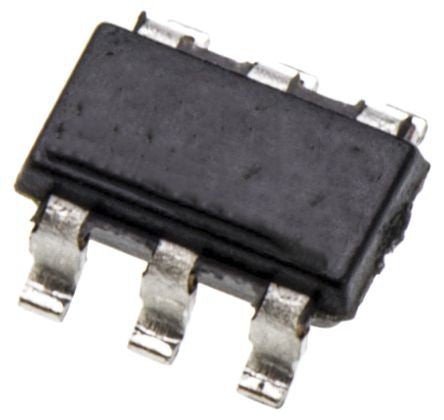

MAX6071BAUT25+T,Voltage References [MAX6071BAUT25+T]; 191-3325
0₫
Mã kho: 1913325
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 2.5V |
| Package Type | SOT-23 |
| Reference Type | Precision |
| Initial Accuracy | 0.0008 |
| Mounting Type | Surface Mount |
| Topology | Series |
| Maximum Output Current | ±10mA |
| Maximum Input Voltage | 5.5 V |
| Pin Count | 6 |
| Line Regulation | 175 μV/V |
| Load Regulation | 125 (Sourcing) μV/mA, 140 (Sink) μV/mA |
| Dimensions | 3 x 1.75 x 1.3mm |
| Maximum Operating Temperature | +125 °C |
| Height | 1.3mm |
| Width | 1.75mm |
| Minimum Operating Temperature | -40 °C |
| Length | 3mm |
