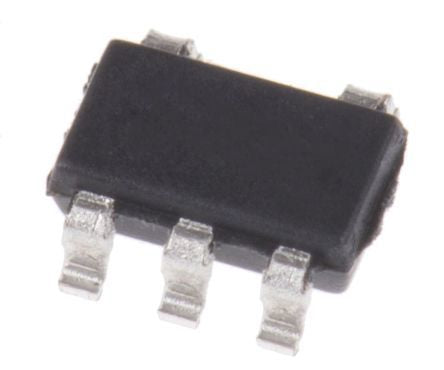

Low-Power Fixed Adjustable Ref Shutdown [MAX6037AAUKADJ+T]; 190-6538
0₫
Mã kho: 1906538
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 1.18 - 5V |
| Package Type | SOT-23 |
| Reference Type | Adjustable |
| Initial Accuracy | 0.002 |
| Mounting Type | Surface Mount |
| Topology | Series |
| Maximum Input Voltage | 5.5 V |
| Minimum Output Voltage | 1.181 V |
| Maximum Output Voltage | 1.186 V |
| Pin Count | 5 |
| Line Regulation | 0.013 %/V |
| Load Regulation | 0.1 (Sourcing) %/mA, 0.12 (Sink) %/mA |
| Dimensions | 3 x 1.75 x 1.3mm |
| Width | 1.75mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Height | 1.3mm |
| Length | 3mm |
