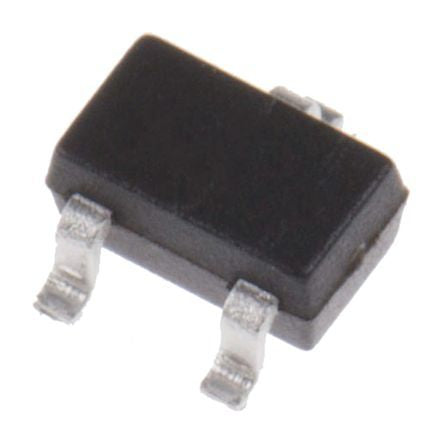

µPower Shunt Voltage Ref [LM4040CEX3-3.3+T]; 190-6460
0₫
Mã kho: 1906460
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 3.3V |
| Package Type | SC-70 |
| Reference Type | Precision |
| Initial Accuracy | 0.005 |
| Mounting Type | Surface Mount |
| Topology | Shunt |
| Pin Count | 3 |
| Dimensions | 2.2 x 1.35 x 1mm |
| Width | 1.35mm |
| Minimum Operating Temperature | -40 °C |
| Height | 1mm |
| Length | 2.2mm |
| Maximum Operating Temperature | +125 °C |
