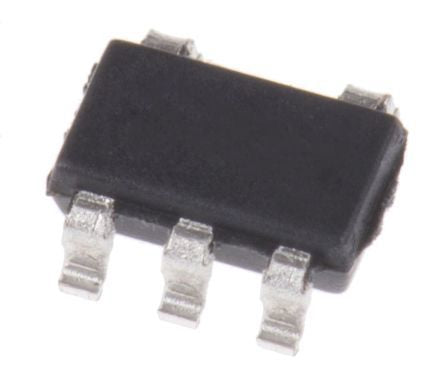

Electronically Programmable Voltage Ref [DS4303R+T&R]; 190-6448
0₫
Mã kho: 1906448
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 0.3 - 3.3V |
| Package Type | SOT-23 |
| Reference Type | Adjustable |
| Mounting Type | Surface Mount |
| Topology | Shunt |
| Maximum Input Voltage | 3.6 V |
| Minimum Output Voltage | 0.3 V |
| Maximum Output Voltage | 3.3 V |
| Pin Count | 5 |
| Line Regulation | 1 mV/V |
| Load Regulation | 5.5 mV/mA |
| Dimensions | 3 x 1.75 x 1.3mm |
| Width | 1.75mm |
| Length | 3mm |
| Maximum Operating Temperature | +85 °C |
| Height | 1.3mm |
| Minimum Operating Temperature | -40 °C |
