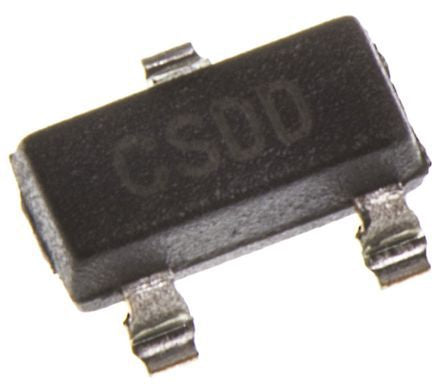

Intersil ISL21010CFH315Z-T7A, Fixed Series Voltage Reference 1.5V, ±0.2 % 3-Pin, SOT-23 [ISL21010CFH315Z-T7A]; 170-8084
by Intersil
0₫
Mã kho: 1708084
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Voltage | 1.5V |
Package Type | SOT-23 |
Reference Type | Fixed |
Initial Accuracy | ±0.2 % |
Mounting Type | Surface Mount |
Topology | Series |
Maximum Output Current | 25mA |
Maximum Input Voltage | 5.5 V |
Maximum Output Voltage | 1.5 V |
Pin Count | 3 |
Line Regulation | 100 μV/V |
Load Regulation | 110 μV/mA |
Dimensions | 2.92 x 1.3 x 0.95mm |
Maximum Operating Temperature | +125 °C |
Width | 1.3mm |
Minimum Operating Temperature | -40 °C |
Height | 0.95mm |
Length | 2.92mm |
