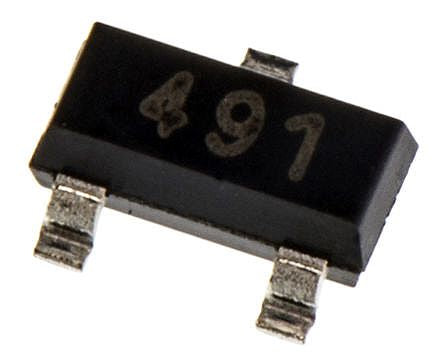

Diodes Inc ZRC500F01TA, Fixed Shunt Voltage Reference 5V, ±1.0 % 3-Pin, SOT-23 [ZRC500F01TA]; 885-5653
by DiodesZetex
0₫
Mã kho: 8855653
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Voltage | 5V |
Package Type | SOT-23 |
Reference Type | Fixed |
Initial Accuracy | ±1.0 % |
Mounting Type | Surface Mount |
Topology | Shunt |
Maximum Output Current | 5mA |
Maximum Input Voltage | 5 V |
Maximum Output Voltage | 5 V |
Pin Count | 3 |
Dimensions | 3 x 1.4 x 1.1mm |
Length | 3mm |
Height | 1.1mm |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
Width | 1.4mm |
