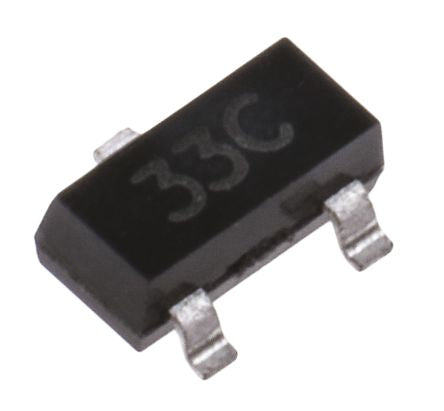

Diodes Inc ZRC330F01TA, Fixed Shunt Voltage Reference 3.3V, ±1.0 % 3-Pin, SOT-23 [ZRC330F01TA]; 922-8178
by DiodesZetex
0₫
Mã kho: 9228178
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 3.3V |
| Package Type | SOT-23 |
| Reference Type | Fixed |
| Initial Accuracy | ±1.0 % |
| Mounting Type | Surface Mount |
| Topology | Shunt |
| Maximum Output Current | 5mA |
| Minimum Output Voltage | 3.27 V |
| Maximum Output Voltage | 3.33 V |
| Pin Count | 3 |
| Dimensions | 3.04 x 1.4 x 1.02mm |
| Height | 1.02mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Length | 3.04mm |
| Width | 1.4mm |
