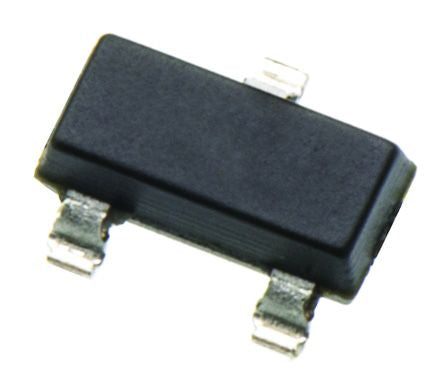

Diodes Inc AN431BN-ATRG1, Adjustable Shunt Voltage Reference 2.5V, ±1.0 % 3-Pin, SOT-23 [AN431BN-ATRG1]; 921-0366
by DiodesZetex
0₫
Mã kho: 9210366
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 2.5V |
| Package Type | SOT-23 |
| Reference Type | Adjustable |
| Initial Accuracy | ±1.0 % |
| Mounting Type | Surface Mount |
| Topology | Shunt |
| Maximum Output Current | 100mA |
| Maximum Input Voltage | 36 V |
| Minimum Output Voltage | 2.5 V |
| Maximum Output Voltage | 36 V |
| Pin Count | 3 |
| Dimensions | 3 x 1.4 x 1.1mm |
| Minimum Operating Temperature | -40 °C |
| Width | 1.4mm |
| Length | 3mm |
| Height | 1.1mm |
| Maximum Operating Temperature | +125 °C |
