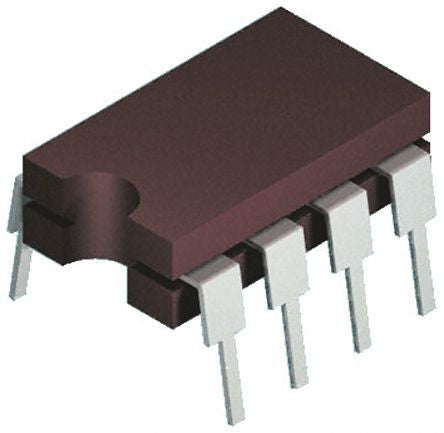

Analog Devices REF02EZ, Fixed Series Voltage Reference 5V, ±0.6 % 8-Pin, CERDIP [REF02EZ]; 912-8194
0₫
Mã kho: 9128194
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 5V |
| Package Type | CERDIP |
| Reference Type | Fixed |
| Initial Accuracy | ±0.6 % |
| Mounting Type | Through Hole |
| Topology | Series |
| Maximum Input Voltage | 40 V |
| Minimum Output Voltage | 4.985 V |
| Maximum Output Voltage | 5.015 V |
| Pin Count | 8 |
| Line Regulation | 0.01 %/V |
| Load Regulation | 0.01 %/mA |
| Dimensions | 10.29 x 7.87 x 3.56mm |
| Height | 3.56mm |
| Length | 10.29mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 7.87mm |
