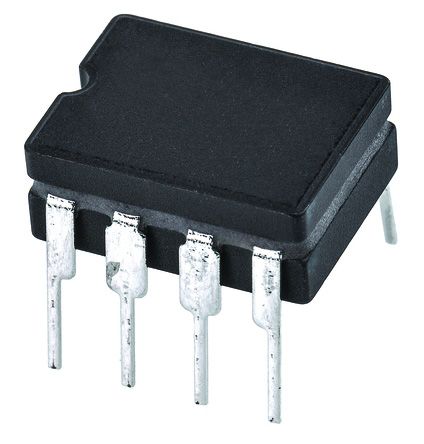

Analog Devices REF01HZ, Fixed Series Voltage Reference 10V, ±0.5 % 8-Pin, CERDIP [REF01HZ]; 160-2932
0₫
Mã kho: 1602932
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Voltage | 10V |
Package Type | CERDIP |
Reference Type | Fixed |
Initial Accuracy | ±0.5 % |
Mounting Type | Through Hole |
Topology | Series |
Maximum Output Current | 10mA |
Maximum Input Voltage | 15 V |
Minimum Output Voltage | 9.95 V |
Maximum Output Voltage | 10.05 V |
Pin Count | 8 |
Line Regulation | 150 ppm/V |
Load Regulation | 150 ppm/mA |
Dimensions | 10.29 x 7.87 x 3.56mm |
Height | 3.56mm |
Maximum Operating Temperature | +85 °C |
Length | 10.29mm |
Width | 7.87mm |
Minimum Operating Temperature | -40 °C |
