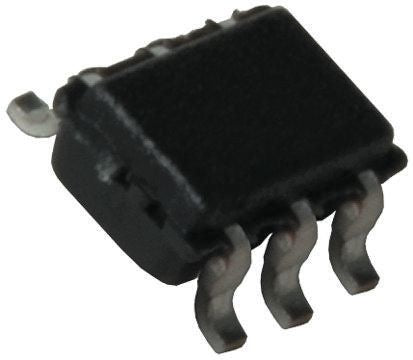

Linear Technology LT1790AIS6-2.5#TRMPBF, Fixed Series Voltage Reference 2.5V, ±0.05 % 6-Pin, TSOT-23 [LT1790AIS6-2.5#TRMPBF]; 154-6180
0₫
Mã kho: 1546180
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 2.5V |
| Package Type | TSOT-23 |
| Reference Type | Fixed |
| Initial Accuracy | ±0.05 % |
| Mounting Type | Surface Mount |
| Topology | Series |
| Maximum Input Voltage | 20 V |
| Minimum Output Voltage | 2.499 V |
| Maximum Output Voltage | 2.501 V |
| Pin Count | 6 |
| Line Regulation | 220 ppm/V |
| Load Regulation | 250 ppm/V, 300 ppm/V |
| Dimensions | 2.9 x 1.75 x 0.9mm |
| Length | 2.9mm |
| Width | 1.75mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Height | 0.9mm |
