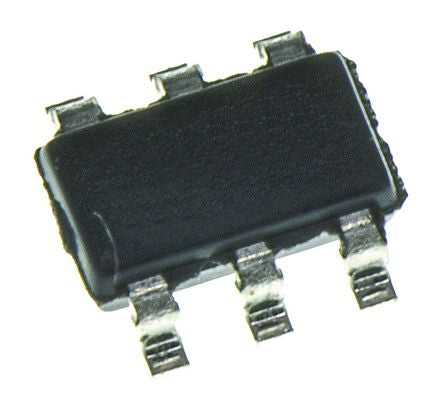

Linear Technology LT1790ACS6-1.25#TRMPBF, Fixed Series Voltage Reference 1.25V, ±0.05 % 6-Pin, TSOT-23 [LT1790ACS6-1.25#TRMPBF]; 884-2528
0₫
Mã kho: 8842528
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 1.25V |
| Package Type | TSOT-23 |
| Reference Type | Fixed |
| Initial Accuracy | ±0.05 % |
| Mounting Type | Surface Mount |
| Topology | Series |
| Maximum Output Current | 300mA |
| Maximum Input Voltage | 20 V |
| Minimum Output Voltage | 1.248 V |
| Maximum Output Voltage | 1.251 V |
| Pin Count | 6 |
| Line Regulation | 220 ppm/V |
| Load Regulation | 250 ppm/mA |
| Dimensions | 2.9 x 1.75 x 0.9mm |
| Width | 1.75mm |
| Length | 2.9mm |
| Height | 0.9mm |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
