| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 2.5V |

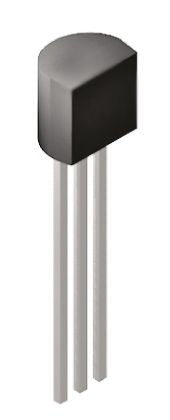

| Package Type | TO-92 |
| Reference Type | Fixed |
| Initial Accuracy | ±0.25 % |
| Mounting Type | Through Hole |
| Topology | Series |
| Maximum Input Voltage | 30 V |
| Minimum Output Voltage | 2.494 V |
| Maximum Output Voltage | 2.506 V |
| Pin Count | 3 |
| Line Regulation | 60 ppm/V |
| Load Regulation | 2800 ppm/mA |
| Dimensions | 4.57 x 3.56 x 4.57mm |
| Minimum Operating Temperature | 0 °C |
| Width | 3.56mm |
| Height | 4.57mm |
| Length | 4.57mm |
| Maximum Operating Temperature | +70 °C |
