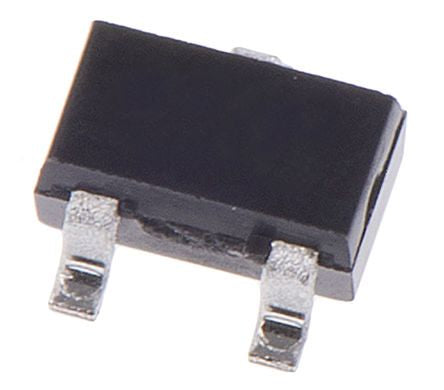

Analog Devices ADR5040AKSZ-R2, Fixed Shunt Voltage Reference 2.048V, ±0.2 % 3-Pin, SC-70 [ADR5040AKSZ-R2]; 160-4573
0₫
Mã kho: 1604573
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 2.048V |
| Package Type | SC-70 |
| Reference Type | Fixed |
| Initial Accuracy | ±0.2 % |
| Mounting Type | Surface Mount |
| Topology | Shunt |
| Maximum Output Current | 15mA |
| Minimum Output Voltage | 2.044 V |
| Maximum Output Voltage | 2.052 V |
| Pin Count | 3 |
| Dimensions | 2.2 x 1.35 x 1mm |
| Length | 2.2mm |
| Maximum Operating Temperature | +125 °C |
| Width | 1.35mm |
| Height | 1mm |
| Minimum Operating Temperature | -40 °C |
