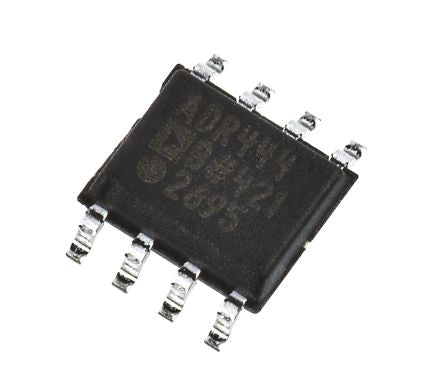

Analog Devices ADR444BRZ, Fixed Series Voltage Reference 4.096V, ±0.04 % 8-Pin, SOIC [ADR444BRZ]; 709-5308
0₫
Mã kho: 7095308
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 4.096V |
| Package Type | SOIC |
| Reference Type | Fixed |
| Initial Accuracy | ±0.04 % |
| Mounting Type | Surface Mount |
| Topology | Series |
| Maximum Output Current | 10mA |
| Maximum Input Voltage | 20 V |
| Minimum Output Voltage | 4.094 V |
| Maximum Output Voltage | 4.098 V |
| Pin Count | 8 |
| Line Regulation | 20 ppm/V |
| Load Regulation | 50 ppm/mA |
| Dimensions | 5 x 4 x 1.5mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Height | 1.5mm |
| Width | 4mm |
| Length | 5mm |
