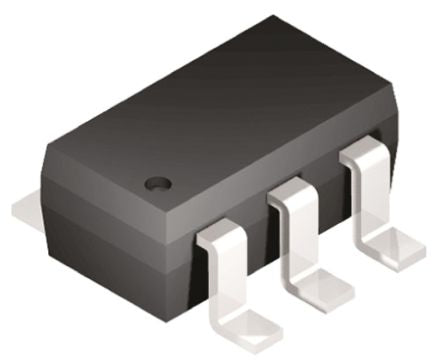

![Analog Devices ADR3440ARJZ-R2 7969111](http://nguyenxuong.com/cdn/shop/products/SOT23-06_05987fce-e9aa-4ed6-8c82-e629e91eaa03_444x363.jpg?v=1594067573)
Analog Devices ADR3440ARJZ-R2, Fixed Series Voltage Reference 4.096V, ±0.1 % 6-Pin, SOT-23 [ADR3440ARJZ-R2]; 796-9111
0₫
Mã kho: 7969111
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Voltage | 4.096V |
Package Type | SOT-23 |
Reference Type | Fixed |
Initial Accuracy | ±0.1 % |
Mounting Type | Surface Mount |
Topology | Series |
Maximum Output Current | 10mA |
Maximum Input Voltage | 5.5 V |
Minimum Output Voltage | 4.0919 V |
Maximum Output Voltage | 4.1 V |
Pin Count | 6 |
Line Regulation | 120 ppm/V |
Load Regulation | 50 ppm/mA |
Dimensions | 3 x 1.7 x 1.3mm |
Width | 1.7mm |
Minimum Operating Temperature | -40 °C |
Height | 1.3mm |
Maximum Operating Temperature | +125 °C |
Length | 3mm |
