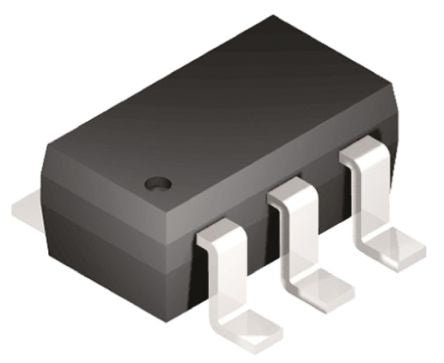

Analog Devices ADR3433ARJZ-R2, Fixed Series Voltage Reference 3.3V, ±0.1 % 6-Pin, SOT-23 [ADR3433ARJZ-R2]; 796-9117
0₫
Mã kho: 7969117
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 3.3V |
| Package Type | SOT-23 |
| Reference Type | Fixed |
| Initial Accuracy | ±0.1 % |
| Mounting Type | Surface Mount |
| Topology | Series |
| Maximum Output Current | 10mA |
| Maximum Input Voltage | 5.5 V |
| Minimum Output Voltage | 3.2967 V |
| Maximum Output Voltage | 3.3 V |
| Pin Count | 6 |
| Line Regulation | 120 ppm/V |
| Load Regulation | 50 ppm/mA |
| Dimensions | 3 x 1.7 x 1.3mm |
| Height | 1.3mm |
| Maximum Operating Temperature | +125 °C |
| Width | 1.7mm |
| Minimum Operating Temperature | -40 °C |
| Length | 3mm |
