Analog Devices ADR292GRUZ, Fixed Series Voltage Reference 4.096V, ±0.15 % 8-Pin, TSSOP [ADR292GRUZ]; 159-7989
0₫
Mã kho: 1597989
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Voltage | 4.096V |

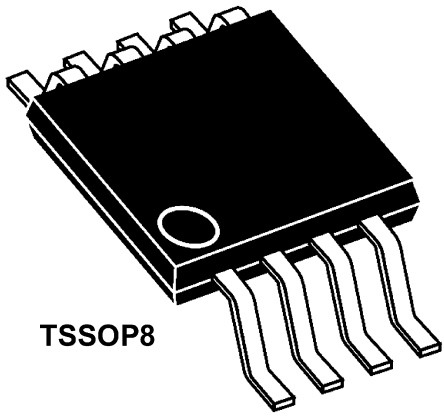

Package Type | TSSOP |
Reference Type | Fixed |
Initial Accuracy | ±0.15 % |
Mounting Type | Surface Mount |
Topology | Series |
Maximum Output Current | 5mA |
Maximum Input Voltage | 18 V |
Minimum Output Voltage | 4.09 V |
Maximum Output Voltage | 4.102 V |
Pin Count | 8 |
Line Regulation | 125 ppm/V |
Load Regulation | 125 ppm/mA |
Dimensions | 3 x 4.4 x 1.05mm |
Height | 1.05mm |
Maximum Operating Temperature | +125 °C |
Length | 3mm |
Width | 4.4mm |
Minimum Operating Temperature | -40 °C |
