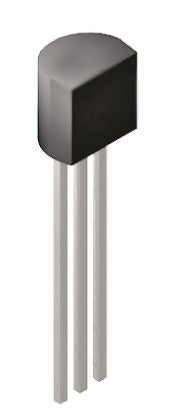

Analog Devices ADR291GT9Z, Fixed Series Voltage Reference 2.5V, ±0.24 % 3-Pin, TO-92 [ADR291GT9Z]; 159-8164
0₫
Mã kho: 1598164
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Voltage | 2.5V |
Package Type | TO-92 |
Reference Type | Fixed |
Initial Accuracy | ±0.24 % |
Mounting Type | Through Hole |
Topology | Series |
Maximum Output Current | 5mA |
Maximum Input Voltage | 15 V |
Minimum Output Voltage | 2.498 V |
Maximum Output Voltage | 2.502 V |
Pin Count | 3 |
Line Regulation | 125 ppm/V |
Load Regulation | 125 ppm/mA |
Dimensions | 5.21 x 4.19 x 5.33mm |
Length | 5.21mm |
Maximum Operating Temperature | +125 °C |
Height | 5.33mm |
Width | 4.19mm |
Minimum Operating Temperature | -40 °C |
