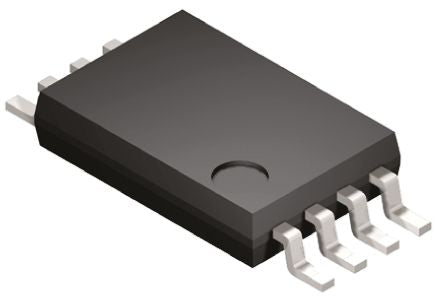

Analog Devices ADR291GRUZ, Fixed Series Voltage Reference 2.5V, ±0.24 % 8-Pin, TSSOP [ADR291GRUZ]; 159-7703
0₫
Mã kho: 1597703
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 2.5V |
| Package Type | TSSOP |
| Reference Type | Fixed |
| Initial Accuracy | ±0.24 % |
| Mounting Type | Surface Mount |
| Topology | Series |
| Maximum Output Current | 5mA |
| Maximum Input Voltage | 15 V |
| Minimum Output Voltage | 2.498 V |
| Maximum Output Voltage | 2.502 V |
| Pin Count | 8 |
| Line Regulation | 125 ppm/V |
| Load Regulation | 125 ppm/mA |
| Dimensions | 4.5 x 3.1 x 1.05mm |
| Length | 4.5mm |
| Maximum Operating Temperature | +125 °C |
| Height | 1.05mm |
| Minimum Operating Temperature | -40 °C |
| Width | 3.1mm |
