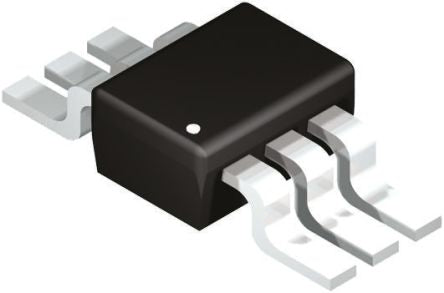

Analog Devices ADR127AUJZ-R2, Fixed Series Voltage Reference 1.25V, ±0.24 % 6-Pin, TSOT [ADR127AUJZ-R2]; 158-0577
0₫
Mã kho: 1580577
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 1.25V |
| Package Type | TSOT |
| Reference Type | Fixed |
| Initial Accuracy | ±0.24 % |
| Mounting Type | Surface Mount |
| Topology | Series |
| Maximum Output Current | 5mA |
| Maximum Input Voltage | 20 V |
| Minimum Output Voltage | 1.247 V |
| Maximum Output Voltage | 1.253 V |
| Pin Count | 6 |
| Line Regulation | 90 ppm/V |
| Load Regulation | 400 ppm/mA |
| Dimensions | 2.9 x 1.6 x 0.87mm |
| Width | 1.6mm |
| Maximum Operating Temperature | +125 °C |
| Length | 2.9mm |
| Height | 0.87mm |
| Minimum Operating Temperature | -40 °C |
