![Analog Devices AD780ARZ 5237976](http://nguyenxuong.com/cdn/shop/products/F5237976-01_444x404.jpg?v=1594038006)

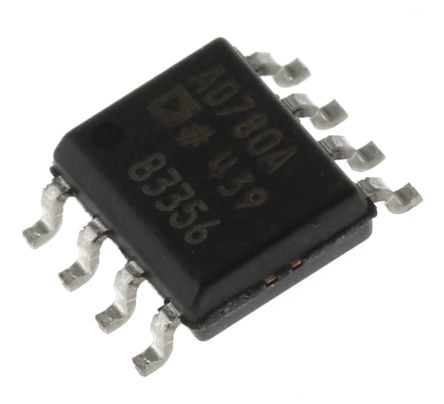

Analog Devices AD780ARZ, Adjustable Series/Shunt Voltage Reference 2.5 V, 3 V, ±0.2 % 8-Pin, SOIC [AD780ARZ]; 523-7976
0₫
Mã kho: 5237976
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Voltage | 2.5 V, 3 V |
Package Type | SOIC |
Reference Type | Programmable |
Initial Accuracy | ±0.2 % |
Mounting Type | Surface Mount |
Topology | Series/Shunt |
Maximum Output Current | 10mA |
Maximum Input Voltage | 36 V |
Minimum Output Voltage | 2.495 V, 2.995 V |
Maximum Output Voltage | 2 V, 3 V |
Pin Count | 8 |
Line Regulation | 10 μV/V |
Load Regulation | 75 μV/mA |
Dimensions | 5 x 4 x 1.5mm |
Height | 1.5mm |
Length | 5mm |
Maximum Operating Temperature | +85 °C |
Width | 4mm |
Minimum Operating Temperature | -40 °C |
