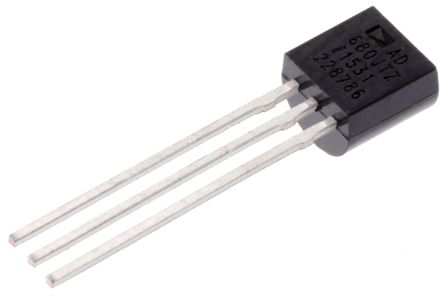

Analog Devices AD680JTZ, Fixed Series Voltage Reference 2.5V, ±0.4 % 3-Pin, TO-92 [AD680JTZ]; 230-595
0₫
Mã kho: 230595
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Voltage | 2.5V |
Package Type | TO-92 |
Reference Type | Fixed |
Initial Accuracy | ±0.4 % |
Mounting Type | Through Hole |
Topology | Series |
Maximum Output Current | 10mA |
Maximum Input Voltage | 36 V |
Minimum Output Voltage | 2.49 V |
Maximum Output Voltage | 2.51 V |
Pin Count | 3 |
Line Regulation | 40 μV/V |
Load Regulation | 100 μV/mA |
Dimensions | 5.21 x 4.19 x 5.33mm |
Height | 5.33mm |
Minimum Operating Temperature | 0 °C |
Width | 4.19mm |
Length | 5.21mm |
Maximum Operating Temperature | +70 °C |
