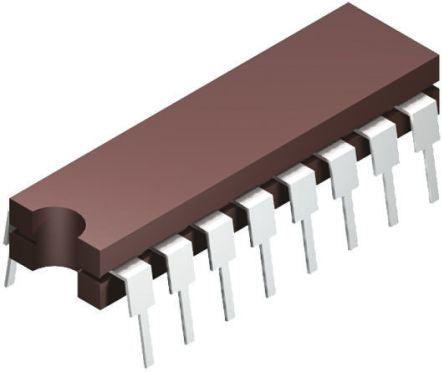

Analog Devices AD588BQ, Adjustable Series Voltage Reference ±10 V, ±5 V, ±0.02 % 16-Pin, CERDIP [AD588BQ]; 758-9692
0₫
Mã kho: 7589692
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | ±10 V, ±5 V |
| Package Type | CERDIP |
| Reference Type | Programmable |
| Initial Accuracy | ±0.02 % |
| Mounting Type | Through Hole |
| Topology | Series |
| Maximum Output Current | 10mA |
| Maximum Input Voltage | 36 V |
| Maximum Output Voltage | 10 V |
| Pin Count | 16 |
| Line Regulation | ±200 μV/V |
| Load Regulation | ±50 μV/mA |
| Dimensions | 21.34 x 7.87 x 3.56mm |
| Length | 21.34mm |
| Minimum Operating Temperature | -25 °C |
| Width | 7.87mm |
| Maximum Operating Temperature | +85 °C |
| Height | 3.56mm |
