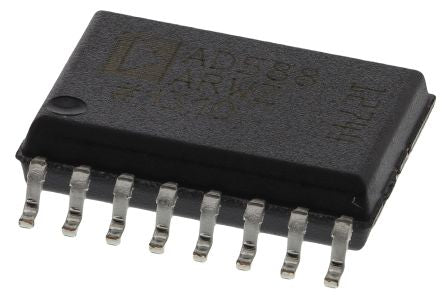

Analog Devices AD588ARWZ, Adjustable Series Voltage Reference 10V, ±0.05 % 16-Pin, SOIC W [AD588ARWZ]; 709-4803
0₫
Mã kho: 7094803
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 10V |
| Package Type | SOIC W |
| Reference Type | Programmable |
| Initial Accuracy | ±0.05 % |
| Mounting Type | Surface Mount |
| Topology | Series |
| Maximum Output Current | 10mA |
| Maximum Input Voltage | 36 V |
| Minimum Output Voltage | -10 V, -5 V |
| Maximum Output Voltage | ±10 V |
| Pin Count | 16 |
| Line Regulation | 200 μV/V |
| Load Regulation | 50 μV/mA |
| Dimensions | 10.5 x 7.6 x 2.35mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -25 °C |
| Length | 10.5mm |
| Width | 7.6mm |
| Height | 2.35mm |
