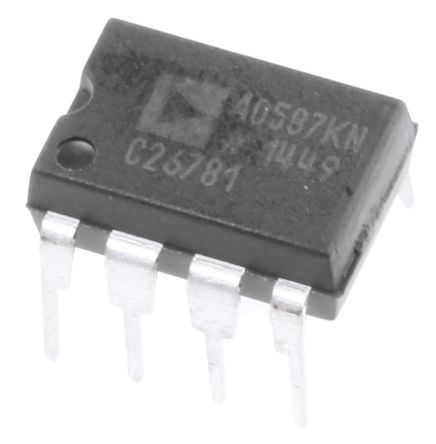

Analog Devices AD587KNZ, Fixed Series Voltage Reference 10V, ±0.05 % 8-Pin, PDIP [AD587KNZ]; 111-1173
0₫
Mã kho: 1111173
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 10V |
| Package Type | PDIP |
| Reference Type | Fixed |
| Initial Accuracy | ±0.05 % |
| Mounting Type | Through Hole |
| Topology | Series |
| Maximum Output Current | 10mA |
| Maximum Input Voltage | 36 V |
| Minimum Output Voltage | 9.995 V |
| Maximum Output Voltage | 10.005 V |
| Pin Count | 8 |
| Line Regulation | 100 μV/V |
| Load Regulation | 100 μV/mA |
| Dimensions | 9.27 x 7.24 x 3.43mm |
| Length | 9.27mm |
| Height | 3.43mm |
| Width | 7.24mm |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
