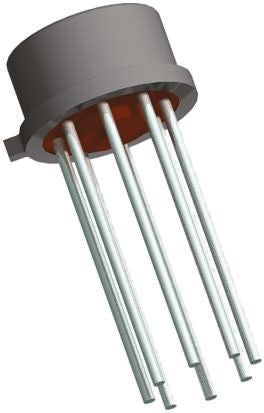

Analog Devices AD584TH, Adjustable Series Voltage Reference 2.5 V, 5 V, 7.5 V, 10 V, ±0.3 % 8-Pin, TO-99 [AD584TH]; 159-7623
0₫
Mã kho: 1597623
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 2.5 V, 5 V, 7.5 V, 10 V |
| Package Type | TO-99 |
| Reference Type | Programmable |
| Initial Accuracy | ±0.3 % |
| Mounting Type | Through Hole |
| Topology | Series |
| Maximum Output Current | 10mA |
| Maximum Input Voltage | 15 V |
| Maximum Output Voltage | 10 V |
| Pin Count | 8 |
| Line Regulation | 0.005 %/V |
| Load Regulation | 50 ppm/mA |
| Dimensions | 8.5 (Dia.) x 4.7mm |
| Width | 8.5mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| Height | 4.7mm |
