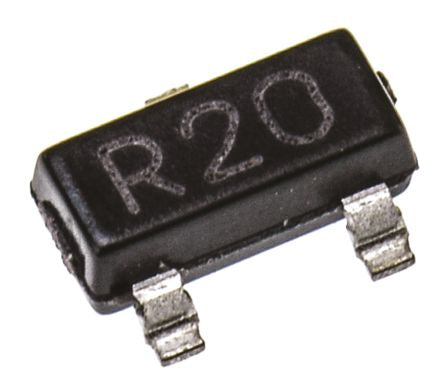

![Analog Devices AD1582BRTZ-REEL7 7091545](http://nguyenxuong.com/cdn/shop/products/F7091545-01_444x382.jpg?v=1593997850)
Analog Devices AD1582BRTZ-REEL7, Fixed Series Voltage Reference 2.5V, ±0.08 % 3-Pin, SOT-23 [AD1582BRTZ-REEL7]; 709-1545
0₫
Mã kho: 7091545
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Voltage | 2.5V |
Package Type | SOT-23 |
Reference Type | Fixed |
Initial Accuracy | ±0.08 % |
Mounting Type | Surface Mount |
Topology | Series |
Maximum Output Current | 5mA |
Maximum Input Voltage | 12 V |
Minimum Output Voltage | 2.498 V |
Maximum Output Voltage | 2.502 V |
Pin Count | 3 |
Line Regulation | 25 μV/V |
Load Regulation | 3.5 mV/mA |
Dimensions | 2.9 x 1.3 x 1.02mm |
Width | 1.3mm |
Length | 2.9mm |
Maximum Operating Temperature | +125 °C |
Minimum Operating Temperature | -40 °C |
Height | 1.02mm |
