![ZF KRE2AEA2GBB 7063976](http://nguyenxuong.com/cdn/shop/products/R7063976-01_444x393.jpg?v=1593761506)

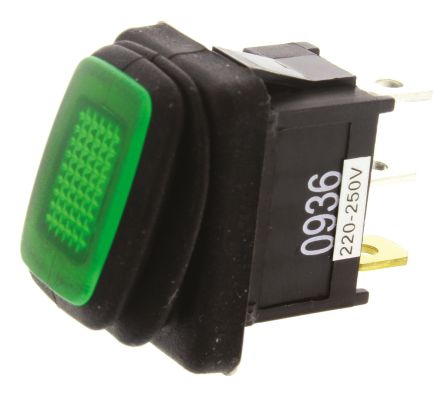

ZF Illuminated Single Pole Single Throw (SPST), Latching Rocker Switch Panel Mount [KRE2AEA2GBB]; 706-3976
by ZF
0₫
Mã kho: 7063976
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Single Pole Single Throw (SPST) |
Switch Operation | On-None-Off |
Panel Cut Out Width | 13mm |
Panel Cut Out Height | 19.4mm |
Contact Current Rating | 20 A @ 14 V dc |
Illuminated | Yes |
Actuator Colour | Green |
Mounting Type | Panel Mount |
IP Rating | IP65 |
Terminal Type | Quick Connect |
Actuator Shape | Rectangular |
Contact Resistance | 50mΩ |
DC Voltage Rating | 14 V, 28 V |
Contact Material | Silver Alloy |
Panel Cut Out Size | 19.4 x 13mm |
Minimum Operating Temperature | -25°C |
Case Material | Nylon 66 |
AC Voltage Rating | 125 V, 250 V |
Maximum Operating Temperature | +85°C |
Operating Temperature Range | -25 → +85°C |
Mechanical Life | 100000Operations |
