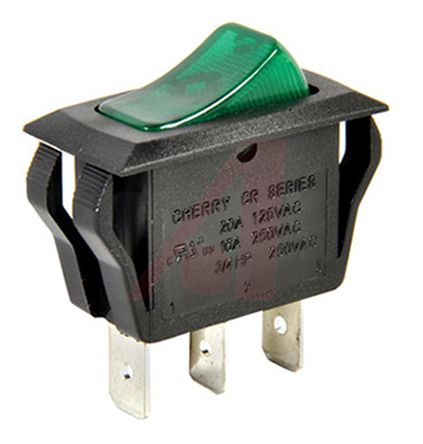

ZF Illuminated Single Pole Single Throw (SPST), Latching Rocker Switch Panel Mount [CRE22F2BBGLE]; 868-1985
by ZF
0₫
Mã kho: 8681985
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | On-None-Off |
| Panel Cut Out Width | 29.21mm |
| Panel Cut Out Height | 12.1mm |
| Contact Current Rating | 20 A |
| Illuminated | Yes |
| Actuator Colour | Green |
| Mounting Type | Panel Mount |
| Terminal Type | Quick Connect |
| Actuator Shape | Rectangular |
| Panel Cut Out Size | 12.1 x 29.21mm |
| Contact Material | Silver Alloy |
| AC Voltage Rating | 125 V, 250 V |
| Case Material | Nylon 66 |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +85°C |
| Mechanical Life | 100000Operations |
| Operating Temperature Range | -20 → +85°C |
| Contact Resistance | 20mΩ |
