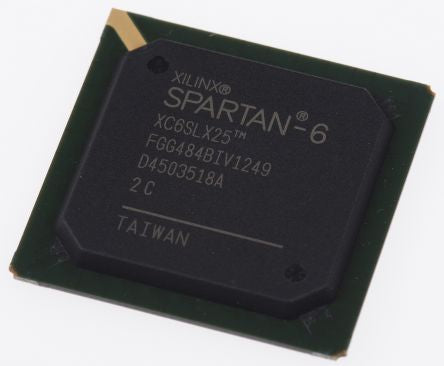

Xilinx FPGA XC6SLX25-2FGG484C, Spartan-6 24051 Cells, 936kbit, 15000 Blocks, 484-Pin FPBGA [XC6SLX25-2FGG484C]; 173-2101
by Xilinx
0₫
Mã kho: 1732101
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | Spartan-6 |
| Number of Logic Cells | 24051 |
| Number of Logic Units | 15000 |
| Dedicated DSP | Yes |
| Number of Registers | 30064 |
| Number of Multipliers | 38 (18 x 18) |
| Mounting Type | Surface Mount |
| Package Type | FPBGA |
| Pin Count | 484 |
| Number of RAM Bits | 936kbit |
| Dimensions | 23 x 23 x 2mm |
| Height | 2mm |
| Length | 23mm |
| Width | 23mm |
| Maximum Operating Supply Voltage | 1.2 V |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +85 °C |
