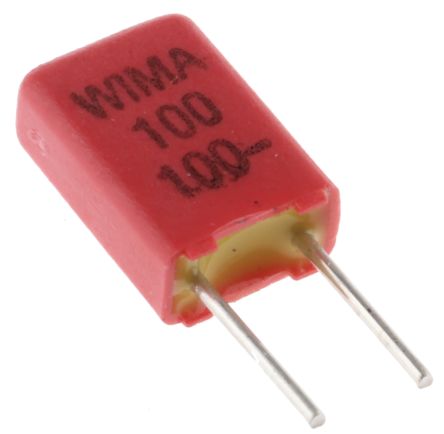

WIMA 100pF Polypropylene Capacitor PP 63 V ac, 100 V dc ±5% Tolerance Through Hole FKP2 Series [FKP02/100/100/5]; 171-0775
by WIMA
0₫
Mã kho: 1710775
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 100 pF |
| Voltage | 63 V ac, 100 V dc |
| Mounting Type | Through Hole |
| Tolerance | ±5% |
| Series | FKP2 |
| Lead Pitch | 2.5mm |
| Length | 4.6mm |
| Depth | 7mm |
| Height | 2.5mm |
| Dimensions | 4.6 x 7 x 2.5mm |
| Dielectric | PP |
| Maximum Operating Temperature | +100°C |
| Terminal Type | Through Hole |
| Lead Diameter | 0.4mm |
| Minimum Operating Temperature | -55°C |
