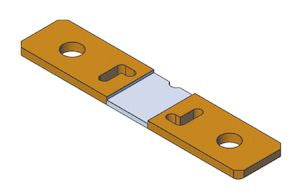

Vishay WSBS8518 Series 8518 Screw Termination Metal Strip Panel Mount Resistor, 1mΩ ±5% 36W [WSBS85181L000JK34]; 177-1404
by Vishay
0₫
Mã kho: 1771404
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resistance | 1 mΩ |
| Power Rating | 36W |
| Series | WSBS8518 |
| Package/Case | 8518 |
| Tolerance | ±5% |
| Technology | Metal Strip |
| Termination Style | Screw |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +170°C |
| Minimum Temperature Coefficient | -10ppm/°C |
| Maximum Temperature Coefficient | +10ppm/°C |
| Overall Width | 18mm |
| Overall Length | 85mm |
| Dimensions | 85 x 18 x 3mm |
| Overall Height | 3mm |
