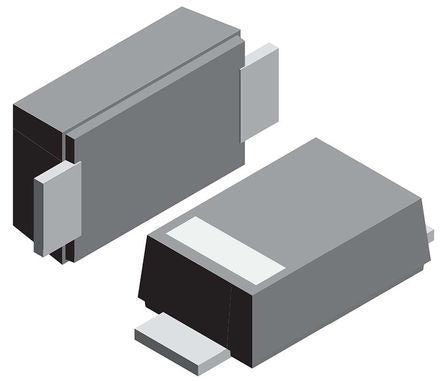

Vishay 200V 1A, Diode, 2-Pin DO-219AB SE10FD-M3/H [SE10FD-M3/H]; 145-1903
by Vishay
0₫
Mã kho: 1451903
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | DO-219AB |
| Maximum Continuous Forward Current | 1A |
| Peak Reverse Repetitive Voltage | 200V |
| Diode Configuration | Single |
| Diode Type | Silicon Junction |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.05V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 780ns |
| Peak Non-Repetitive Forward Surge Current | 25A |
