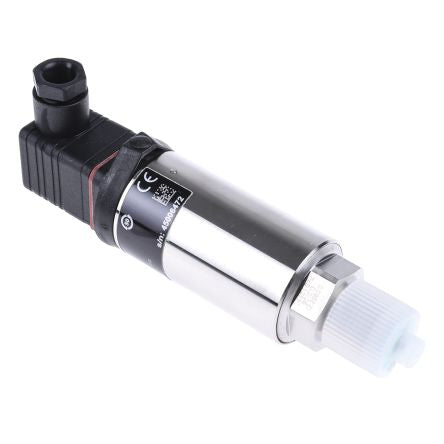

Vega Gauge for Fluid, Gas, Vapour Pressure Sensor, 0.1bar Max Pressure Reading , 12 → 36 V dc, G1/2, IP65 [14X1SA1GV1]; 313-5301
by Vega
0₫
Mã kho: 3135301
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 0.1bar |
| Accuracy | 0.003 |
| Media Measured | Fluid, Gas, Vapour |
| Process Connection | G1/2 |
| Electrical Connection | DIN 43650 Connector |
| Analogue Output | 4 → 20 mA |
| Supply Voltage | 12 → 36 V dc |
| Housing Material | Nickel Plated Brass |
| IP Rating | IP65 |
| Series | Vegabar 14 |
| Minimum Operating Temperature | -40°C |
| Minimum Pressure Setting | 0bar |
| Maximum Pressure Setting | 0.1bar |
| Maximum Operating Temperature | +100°C |
