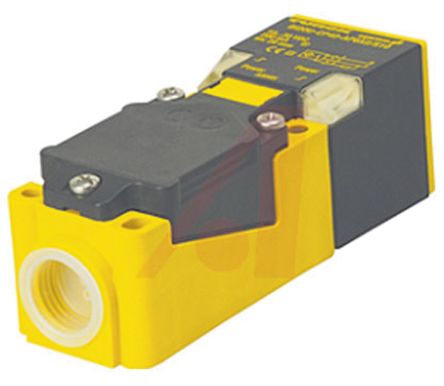

Turck PNP-NO/NC Inductive Sensor 40mm Length, 10 → 65 V dc supply voltage , IP68 Rating [NI50U-CP40-VP4X2]; 837-6027
by Turck
0₫
Mã kho: 8376027
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Block |
| Output Type | PNP-NO/NC |
| Detection Range | 50 mm |
| Terminal Type | M20 Gland |
| Supply Voltage | 10 → 65 V dc |
| Length | 40mm |
| Width | 114mm |
| Depth | 40mm |
| Maximum DC Voltage | 65V |
| Mounting Type | Non Flush |
| Switching Current | ≤200 mA |
| IP Rating | IP68 |
| Housing Material | PBT, Plastic |
| Short Circuit Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Maximum Switching Frequency | 250Hz |
| Shielding | Shielded |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
