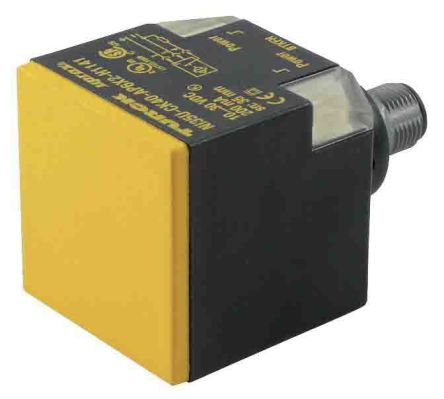

UPROX-3 IO-Link 40mm SQ Inductive Sensor [NI50U-CK40-IOL6X2-H1141]; 188-8542
by Turck
0₫
Mã kho: 1888542
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Block |
| Thread Size | M12 x 1 |
| Output Type | PNP/NPN-NO/NC |
| Detection Range | 50 mm |
| Supply Voltage | 10 → 30 V dc |
| Length | 40mm |
| Communication Protocol | IO-LINK |
| Width | 65mm |
| Depth | 40mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Flush Mount |
| IP Rating | IP68 |
| Interface | IO-Link |
| Switching Current | 150 mA |
| Housing Material | Plastic |
| Short Circuit Overload Protection | Yes |
| Maximum Switching Frequency | 0.5kHz |
| Reverse Polarity Protection | Yes |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
