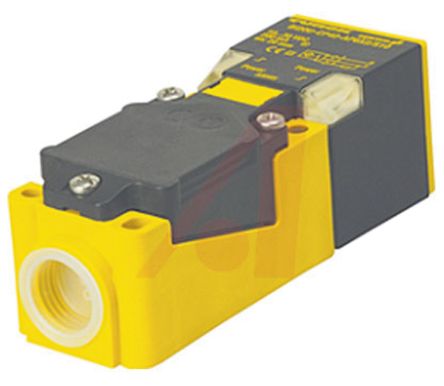

Turck NPN-NO/NC Inductive Sensor 114mm Length, 10 → 65 V dc supply voltage , IP67 Rating [NI35-CP40-VN4X2]; 837-5973
by Turck
0₫
Mã kho: 8375973
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Body Style | Block |
Output Type | NPN-NO/NC |
Detection Range | 35 mm |
Terminal Type | 1/2-14NPT Connector |
Supply Voltage | 10 → 65 V dc |
Length | 114mm |
Width | 40mm |
Depth | 40mm |
Maximum DC Voltage | 65V |
Mounting Type | Non Flush |
Switching Current | ≤200 mA |
IP Rating | IP67 |
Housing Material | PBT, Plastic |
Reverse Polarity Protection | Yes |
Shielding | Unshielded |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -25°C |
Maximum Switching Frequency | 150Hz |
Short Circuit Overload Protection | Yes |
