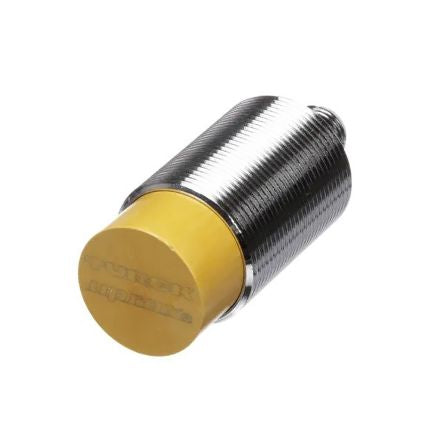

Turck, M12 x 1, PNP-NO Inductive Sensor 62mm Length, 10 → 30 V dc supply voltage , IP67 Rating [NI20U-M30-AP6X-H1141]; 837-5942
by Turck
0₫
Mã kho: 8375942
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Output Type | PNP-NO |
| Detection Range | 20 mm |
| Terminal Type | M12 - 4 Pin |
| Supply Voltage | 10 → 30 V dc |
| Length | 62mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Non Flush |
| IP Rating | IP67 |
| Switching Current | ≤200 mA |
| Housing Material | Brass |
| Short Circuit Overload Protection | Yes |
| Minimum Operating Temperature | -25°C |
| Shielding | Unshielded |
| Reverse Polarity Protection | Yes |
| Maximum Switching Frequency | 1.5kHz |
| Maximum Operating Temperature | +70°C |
