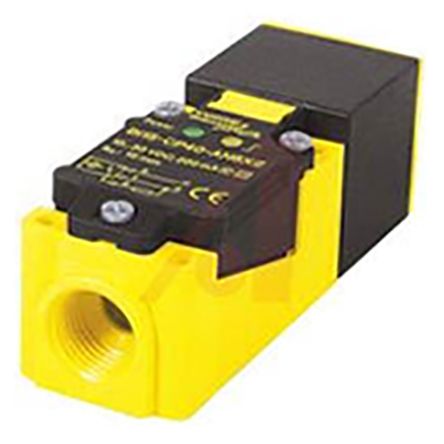

Turck NO/NC Inductive Sensor 114mm Length, 20 → 250 V ac/dc supply voltage , IP67 Rating [NI20-CP40-FZ3X2]; 837-5882
by Turck
0₫
Mã kho: 8375882
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Block |
| Output Type | NO/NC |
| Detection Range | 20 mm |
| Terminal Type | 1/2-14NPT Connector |
| Supply Voltage | 20 → 250 V ac/dc |
| Length | 114mm |
| Width | 40mm |
| Depth | 40mm |
| Maximum DC Voltage | 250V |
| Maximum AC Voltage | 250V |
| Mounting Type | Non Flush |
| Switching Current | ≤500 mA |
| IP Rating | IP67 |
| Housing Material | PBT |
| Maximum Operating Temperature | +70°C |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Minimum Operating Temperature | -25°C |
| Shielding | Unshielded |
| Maximum Switching Frequency | 20Hz |
