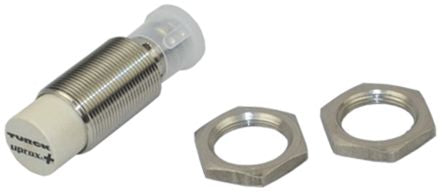

Turck, M18 x 1, PNP-NO Inductive Sensor 52mm Length, 10 → 30 V dc supply voltage , IP68, IP69K Rating [NI15U-EM18WD-AP6X]; 837-5863
by Turck
0₫
Mã kho: 8375863
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M18 x 1 |
| Output Type | PNP-NO |
| Detection Range | 15 mm |
| Terminal Type | Cable |
| Supply Voltage | 10 → 30 V dc |
| Length | 52mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Non Flush |
| Switching Current | ≤200 mA |
| IP Rating | IP68, IP69K |
| Housing Material | Stainless Steel |
| Short Circuit Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Maximum Switching Frequency | 1kHz |
| Shielding | Partial |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +100°C |
