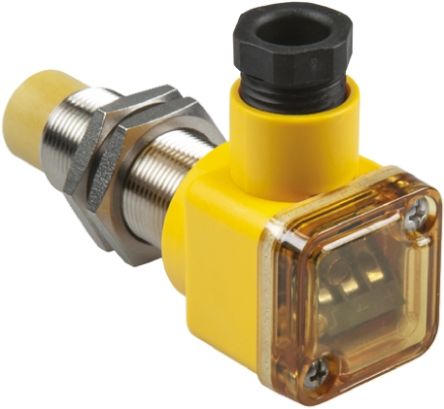

Turck, M18 x 1, NPN-NO Inductive Sensor 77mm Length, 10 → 30 V dc supply voltage , IP68 Rating [NI12U-EG18SK-AN6X]; 794-8671
by Turck
0₫
Mã kho: 7948671
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Body Style | Barrel |
Thread Size | M18 x 1 |
Output Type | NPN-NO |
Detection Range | 12 mm |
Terminal Type | PG9 Gland |
Supply Voltage | 10 → 30 V dc |
Length | 77mm |
Depth | 29mm |
Maximum DC Voltage | 30V |
Mounting Type | Non Flush |
Switching Current | 200 mA |
IP Rating | IP68 |
Housing Material | Metal |
Short Circuit Overload Protection | Yes |
Reverse Polarity Protection | Yes |
Minimum Operating Temperature | -30°C |
Shielding | Partial |
Maximum Operating Temperature | +85°C |
Maximum Switching Frequency | 2kHz |
