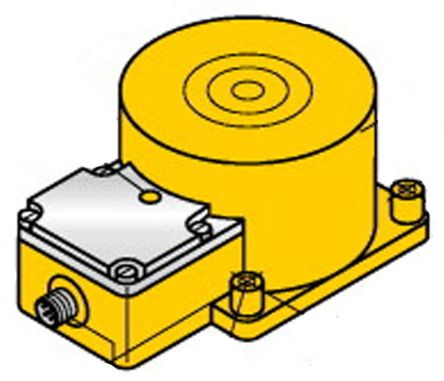

Turck PNP-NO/NC Inductive Sensor 130mm Length, 10 → 65 V dc supply voltage , IP67 Rating [NI100U-K90SR-VP4X2-H1141]; 837-5591
by Turck
0₫
Mã kho: 8375591
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Block |
| Output Type | PNP-NO/NC |
| Detection Range | 100 mm |
| Terminal Type | M20 Gland |
| Supply Voltage | 10 → 65 V dc |
| Length | 130mm |
| Width | 62mm |
| Depth | 90mm |
| Maximum DC Voltage | 65V |
| Mounting Type | Non Flush |
| IP Rating | IP67 |
| Switching Current | ≤200 mA |
| Housing Material | PBT, Plastic |
| Reverse Polarity Protection | Yes |
| Maximum Switching Frequency | 250Hz |
| Short Circuit Overload Protection | Yes |
| Shielding | Partial |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +85°C |
