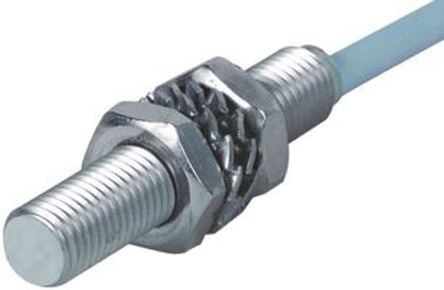

Turck, M8 x 1, NPN-NO Inductive Sensor 41.6mm Length, 10 → 30 V dc supply voltage , IP68 Rating [NI 6U-EG08-AN6X]; 837-5462
by Turck
0₫
Mã kho: 8375462
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M8 x 1 |
| Output Type | NPN-NO |
| Detection Range | 6 mm |
| Terminal Type | Cable |
| Supply Voltage | 10 → 30 V dc |
| Length | 41.6mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Non Flush |
| Switching Current | ≤150 mA |
| IP Rating | IP68 |
| Housing Material | Stainless Steel |
| Short Circuit Overload Protection | Yes |
| Maximum Operating Temperature | +70°C |
| Shielding | Partial |
| Maximum Switching Frequency | 1kHz |
| Reverse Polarity Protection | Yes |
| Minimum Operating Temperature | 0°C |
