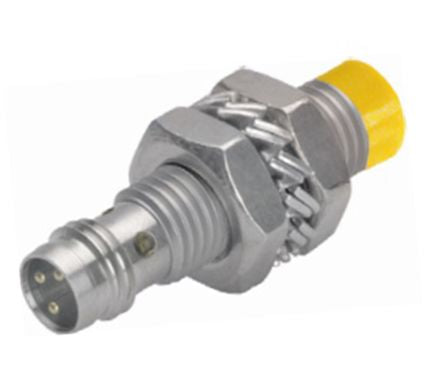

Turck, M8 x 1, NPN-NO Inductive Sensor 31mm Length, 10 → 30 V dc supply voltage , IP67 Rating [NI 3-EG08K-AN6X-V1131]; 837-5315
by Turck
0₫
Mã kho: 8375315
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M8 x 1 |
| Output Type | NPN-NO |
| Detection Range | 3 mm |
| Terminal Type | M8 - 3 Pin |
| Supply Voltage | 10 → 30 V dc |
| Length | 31mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Non Flush |
| Switching Current | 150 mA |
| IP Rating | IP67 |
| Housing Material | Stainless Steel |
| Short Circuit Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Maximum Operating Temperature | +70°C |
| Maximum Switching Frequency | 3kHz |
| Shielding | Unshielded |
| Minimum Operating Temperature | -25°C |
