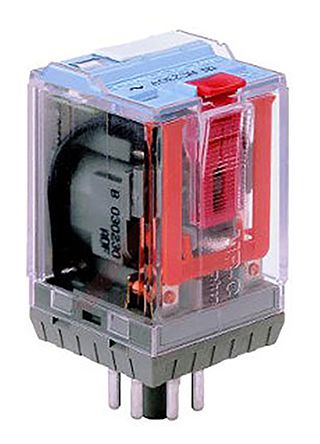

Turck DPDT Non-Latching Relay Plug In, 125V dc Coil, 10 A [C2-A20FX/120-125VDC]; 842-3537
by Turck
0₫
Mã kho: 8423537
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 125 V dc |
| Coil Power | 1.3W |
| Coil Resistance | 9.2 kΩ |
| Isolation Coil To Contact | 2.5kV |
| Contact Configuration | DPDT |
| Mounting Type | Plug In |
| Switching Current | 10A |
| Terminal Type | Plug In |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 220V |
| Series | C2-A20 |
| Depth | 35mm |
| Height | 58.5mm |
| Length | 35mm |
