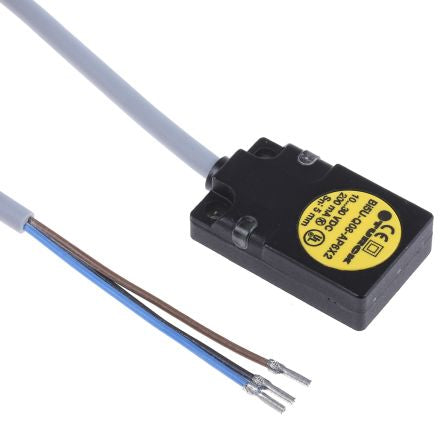

Turck PNP-NO Inductive Sensor 32mm Length, 10 → 30 V dc supply voltage , IP67 Rating [BI5U-Q08-AP6X2]; 362-3729
by Turck
0₫
Mã kho: 3623729
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Body Style | Block |
Output Type | PNP-NO |
Detection Range | 5 mm |
Terminal Type | Cable |
Supply Voltage | 10 → 30 V dc |
Length | 32mm |
Width | 20mm |
Depth | 8mm |
Maximum DC Voltage | 30V |
Mounting Type | Flush Mount |
IP Rating | IP67 |
Switching Current | 200 mA |
Housing Material | Gadolinium Aluminium |
Maximum Operating Temperature | +85°C |
Reverse Polarity Protection | Yes |
Minimum Operating Temperature | -30°C |
Short Circuit Overload Protection | Yes |
Maximum Switching Frequency | 250Hz |
