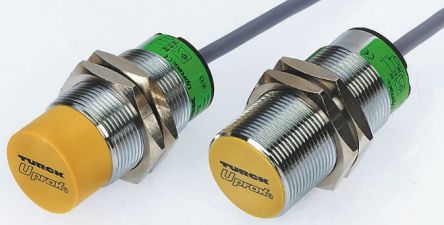

Turck, M18 x 1, PNP-NO Inductive Sensor 36mm Length, 10 → 30 V dc supply voltage , IP68 Rating [BI5U-EM18H-AP6X-H1141]; 405-7101
by Turck
0₫
Mã kho: 4057101
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M18 x 1 |
| Output Type | PNP-NO |
| Detection Range | 5 mm |
| Terminal Type | M12 - 4 Pin |
| Supply Voltage | 10 → 30 V dc |
| Length | 36mm |
| Maximum DC Voltage | 30V |
| Switching Current | 200 mA |
| IP Rating | IP68 |
| Short Circuit Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Maximum Switching Frequency | 2.5kHz |
| Shielding | Shielded |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -25°C |
